RF&Microwave Switch
RF12 series
(SP2T)
RF13~RF16 series
（SP3~6T）
RF17/RF18 series
（SP7~8T）
RF19/RF1A series
（SP9~10T）
RF1B/RF1C series
（SP11~12T）
RF22 series
（DPDT）
RF23 series
（DP3T）
Document Download
-
Xike Technology RF&Microwave Switch Quick Selection Manual 2025V1.2Example Download Document. PDF Summary Content
Why choice Xike?
Most Complete Product Line
SP2-12T and DP2-3T series cover all frequency bands of 12.4, 18, 40, and 54GHz, including high-power, absorption, and reflection types
Idependent Production Capability
Xike Technology possesses complete production equipment for core components, achieving full self-sufficiency in manufacturing key parts.
The company operates:
10,000 cleanroom for assembly
These specialized facilities ensure comprehensive quality control throughout the manufacturing process.
Exceptional Reliability Performance

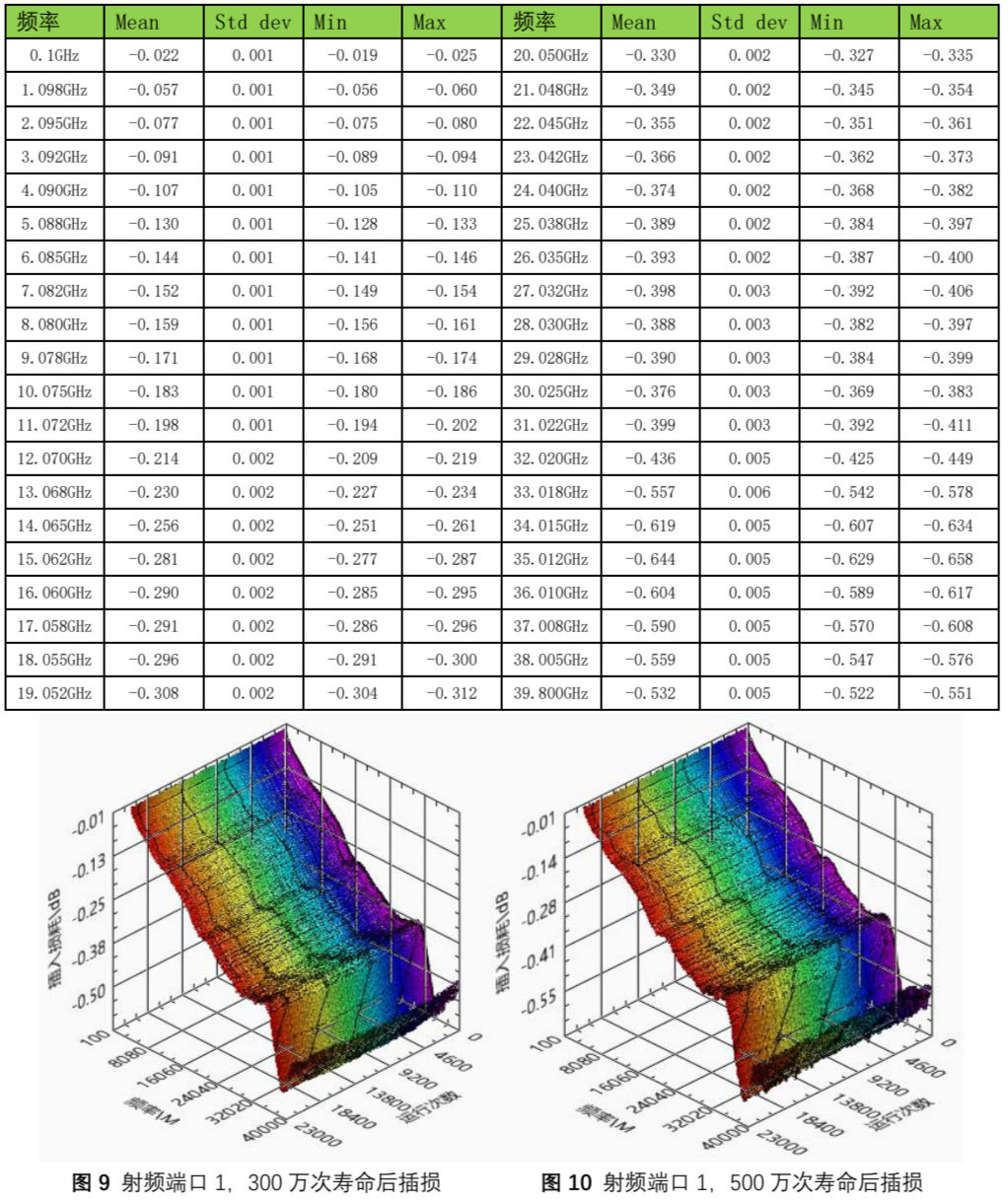

Under norminal life span,Insertion loss repeatability:
≤0.03dB (SMA) | ≤0.05dB (2.92mm) | ≤0.10dB (2.4mm)
Comprehensive Quality Assurance
Xike Technology implements comprehensive quality control through dozens of rigorous tests including shock/vibration, salt spray, thermal cycling, dielectric withstanding, and temperature-altitude stress tests for environmental reliability; repeatability, inter-channel consistency, phase consistency, insertion loss, VSWR, isolation, and lifetime burn-in tests for RF performance; plus actuation time, release voltage and contact resistance validations - ensuring full-spectrum quality assurance for all products.
IRAD（Independent Research And Development）
Xike Technology achieves full in-house development using mechanical, electromagnetic, RF and thermal multidisciplinary co-simulation with 400+ models, we enhance product reliability while reducing development cycles.
Fast Delivery
Xike Technology supports rapid prototyping and customization, delivering switch products within just 2-3 weeks without compromising quality. Short time delivery to ensure you always stay ahead.
RF12 series
___
XiKe RF12 Series (SPDT) supports a broad frequency range of DC–54 GHz and compatibility with multiple connector types, including N-type, SMA, 2.92mm, 2.4mm, and 1.85mm. This Series offers multiple configurations (Absorptive, Reflective, and Power types), a long lifespan up to 10 million cycles, and flexible control options including Latching/Failsafe, Self-Cut-Off/None, and 12/24/28V DC drive voltages. It supports multiple drive modes (TTL, common anode, and common cathode) and offers various interface options including pin header, D-Sub 9, and Mini D-Sub 15 connectors, along with horizontal-mount installation
10 Millions
Long life span
SMA/2,92 connector, 10 million cycles
2.4 connector, 2 million cycles
N-type connector, 1 million cycles
18G, ≤0.03dB
High Repeatability
40G,≤0.05dB
54G,≤0.10dB
800+
Available Models
RF13/RF14/RF15/RF16 series
___
XiKe RF16/RF15/RF14/RF13 (SP6-3T) supports a broad frequency range of DC–57 GHz and compatibility with multiple connector types, including N-type, SMA, 2.92mm, 2.4mm, and 1.85mm. This Series offers multiple configurations (Absorptive, Reflective, and Power types), a long lifespan of 2.5 million/ 3.5 million cycles, and flexible control options including Latching/Failsafe, Self-Cut-Off/None, and 12/24/28V DC drive voltages. It supports multiple drive modes (TTL, common anode, and common cathode) and offers various interface options including pin header, D-Sub 9, Mini D-Sub 15, D-sub 15, D-sub 25 and 2×8P JTAG connectors, along with both horizontal and vertical flange mounting options for flexible integration.
5 Millions
Long life span
SMA/2,92 connector, 5 million cycles
2.4 connector, 2 million cycles
N-type connector, 1 million cycles
18G,≤0.03dB
High reproducibility
40G,≤0.05dB
54G,≤0.10dB
1300+
Available Models
RF17/RF18 series
___
XiKe RF17/RF18 (SP8-7T) supports a broad frequency range of DC–40 GHz and compatibility with multiple connector types, including N-type, SMA, 2.92mm and 2.4mm . This Series offers multiple configurations (Absorptive, Reflective, and Power types), a long lifespan of 2 million/ 3 million cycles, and flexible control options including Latching/Failsafe, Self-Cut-Off/None, and 12/24/28V DC drive voltages. It supports multiple drive modes (TTL, common anode, and common cathode) and offers various interface options including D-sub 15. D-sub 25, Mini D-Sub 15 and 2×10P JTAG connectors, along with both horizontal and vertical flange mounting options for flexible integration.
3 Millions
Long life span
S type, 3 million cycles
M type, 2 million cycles
18G,≤0.03dB
High reproducibility
40G,≤0.05dB
520+
Available Models
RF19/RF1A series
___
XiKe RF19/RF1A (SP10-9T) supports a broad frequency range of DC–26.5 GHz and compatibility with 2.92mm connector. This Series offers multiple configurations (Absorptive and Reflective types), a long lifespan of 2 million cycles, and flexible control options including Latching/Failsafe, Self-Cut-Off/None, and 12/24/28V DC drive voltages. It supports multiple drive modes (TTL, common anode, and common cathode) and offers various interface options including Mini D-Sub 15, D-sub 15, D-sub 25 and 2×12P JTAG connectors, along with both horizontal and vertical flange mounting options for flexible integration.
2 Millions
Long life span
18G,≤0.03dB
High reproducibility
40G,≤0.05dB
54G,≤0.10dB
540+
Available Models
RF1B/RF1C series
___
XiKe RF1B/RF1C (SP12-11T) supports a broad frequency range of DC–18 GHz and compatibility with multiple connector types, including SMA and 2.92mm. This Series offers multiple configurations (Absorptive and Reflective types), a long lifespan of 2 million, and flexible control options including Latching/Failsafe, Self-Cut-Off/None, and 12/24/28V DC drive voltages. It supports multiple drive modes (TTL, common anode, and common cathode) and offers various interface options including Mini D-Sub 15, D-sub 15. D-sub 25, D-sub 44 and 2×14P JTAG connectors, along with both horizontal and vertical flange mounting options for flexible integration.
2 Millions
Long life span
18G,≤0.03dB
High reproducibility
540+
Available Models
RF22 series
___
XiKe RF22 Series (DP2-3T) supports a broad frequency range of DC–40 GHz and compatibility with multiple connector types, including SMA and 2.92mm. This Series offers multiple configurations (Absorptive and Reflective types), a long lifespan up to 2.5 million cycles, and flexible control options including Latching/Failsafe, Self-Cut-Off/None, and 12/24/28V DC drive voltages. It supports multiple drive modes (TTL, common anode, and common cathode) and offers various interface options including pin header, D-Sub 9, Mini D-Sub 15 and 2x5P JTAG connectors, along with bottom mounting and horizontal mounting (with mounting ears) configurations.
2.5 Millions
Long life span
SMA/2,92 connector, 2.5 million cycles
N-type connector, 1 million cycles
18G,≤0.03dB
High reproducibility
40G,≤0.05dB
140+
Available Models
RF23 series
___
The Xike Technology RF23 (DP3T) series offers various common types of connectors such as SMA, 2.92, 2.4, etc., with frequencies covering DC-54GHz; Provide reflective type; Provide a maximum lifespan of 200w cycles; We offer over 300 optional models including Latching/daiilsafe, Self cut off/none, 12/24/28Vd. c. driving voltage, TTL/common positive/common negative, Pin solder pins/D-Sub 9/mini D-Sub15, etc.
300W
long-life
2.92/SMA connector, 300W
2.4 connector, 200W
18G,≤0.03dB
High reproducibility
40G,≤0.05dB
54G,≤0.10dB
70+
Optional models
