Application Scenarios
High frequency relays are widely used in various fields with strict requirements for signal quality due to their ability to efficiently switch high-frequency signals (usually referring to radio frequency or microwave frequency bands) and maintain signal integrity. Their main application scenarios and specific functions are:
1. Communication system
Switching between different frequency band signals in 5G base stations and satellite communication to ensure multi band compatibility and signal transmission efficiency.
2. Testing and measuring equipment
Quickly switch test channels in equipment such as network analyzers and spectrometers to ensure the accuracy of high-frequency signal analysis.
3. Medical Electronics
● MRI RF coil signal switching and energy control for RF ablation therapy improve imaging quality and surgical safety.
4. Military and Aerospace
Radar beamforming and electronic warfare equipment achieve anti-interference and fast signal switching, adapting to extreme environments.
5. Industrial applications
Control power signals in high-frequency heating and plasma equipment for metal processing or material surface treatment.
6. Automotive Electronics
In vehicle radar (ADAS) and vehicle to vehicle networking (V2X), millimeter wave signals are processed to support autonomous driving and high-speed communication.
8. Research and Special Fields
Particle accelerator: Switching high-frequency resonant cavity signals to maintain particle beam stability, quantum computing achieves low-noise switching of microwave signals in superconducting circuits.
Military Field
——
Military scope: warships, submarines, aerospace, radar
Communication range
——
Communication equipment/terminal production: 3G/4G/5G, low orbit satellites+6G, wireless communication, microwave communication, mobile phones, wireless wearables, RF chips
Intelligent Industry
——
Intelligent driving vehicles/unmanned aerial vehicles and upstream industries (wiring harness, radar)
AI computing power server
——
AI computing power server industry (copper connections such as cables, chips) production and testing equipment
Military field
___
High frequency relays have many important applications in the military field.
High frequency relays are used in equipment such as shortwave radios to achieve fast switching and channel selection of high-frequency signals, ensuring reliability and stability of communication in complex electromagnetic environments.
High frequency relays are responsible for the rapid switching and processing of signals, ensuring that the radar can provide target data to the weapon system in a timely and accurate manner, and improving the hit rate of the weapon.
Frequency selection and tuning enable the selection of appropriate RF frequencies based on different combat requirements and environments, ensuring optimal communication and signal processing of the fire control system, reducing interference, improving signal transmission stability and reliability, and enabling the cannon to more accurately lock and track targets.
In the internal communication network of the fleet, RF relays are responsible for controlling the data transmission path between cannons and other ships, command centers, ensuring the fast and secure transmission of important data such as shooting instructions and target information, and achieving coordinated cooperation in the overall operation of the fleet.
communication signal
___
Radio frequency relays play a crucial role in the field of communication, as they can expand and optimize the communication range.

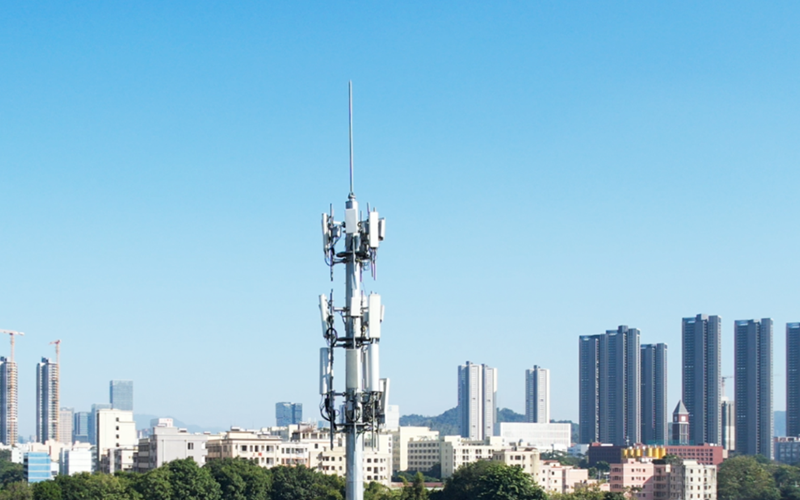

In complex communication networks such as 5G base stations and satellite communication ground stations, RF relays quickly switch signal paths as needed. RF relays can direct signals to corresponding coverage area antennas, optimize signal coverage, and expand communication range.
Different communication scenarios and devices are suitable for different frequency bands, and RF relays can choose the appropriate frequency band. For different transmission distance and rate requirements, select the adaptive frequency band, such as the sub - GHz frequency band with long distance and low rate, to achieve wide area coverage.
RF relays can work in conjunction with amplifiers to adjust signal gain. In long-distance communication or weak signal areas, by controlling the amplifier gain, the signal strength is enhanced and the communication range is expanded. Communication base stations located in mountainous areas where signals are prone to attenuation can improve signal coverage and ensure communication quality.
Intelligent Industry
___
Radio frequency relays play an important role in intelligent driving unmanned aerial vehicle radar and other applications
The RF relay can quickly switch between different working modes of the intelligent driving drone radar, such as search mode, tracking mode, recognition mode, etc., ensuring that the radar can quickly adjust its working state in different scenarios and mission stages.
RF relays can serve as signal isolation between radar and other devices, avoiding crosstalk between different signals and ensuring the purity and accuracy of radar signals.
In complex electromagnetic environments, RF relays can be used in conjunction with filtering and other circuits to isolate the radar's receiving and transmitting channels from interference sources, enabling the radar to stably receive and process target echo signals and improve its performance in interference environments.
When the radar system experiences abnormal situations such as overcurrent and overvoltage, the RF relay can quickly cut off the circuit, protecting the sensitive components and circuit modules of the radar from damage and reducing the impact of the fault on the entire system.
AI computing power server
___
Radio frequency relays also play a very important role in copper connections such as cables, chips, and production testing equipment
For copper connections such as cables: It can accurately control the transmission path of RF signals in copper connection cables according to instructions, enabling accurate signal transmission between different circuits, avoiding signal confusion, and achieving high quality and stability. When overcurrent or overvoltage occurs in the circuit, the RF relay quickly cuts off the circuit to prevent damage to the cable caused by strong current or high voltage.
For chip signals: signal switching and distribution: cooperate with the chip to achieve fast switching between different signal sources, so that the chip can receive and process specific RF signals as needed. It can also distribute a signal to multiple chip input ports, or summarize the output signals of multiple chips into one channel. Establish isolation between the chip and other circuits or devices, while also avoiding interference from signals generated by the chip to other circuits.
For production testing equipment: When conducting production testing on electronic devices, it can quickly switch the path of the testing signal to ensure the performance and stability of the equipment in practical applications. Simultaneously equipped with overcurrent, overvoltage, short circuit and other protection functions, reducing equipment maintenance costs and failure rates.
